TRIF敲除NA与BHK-21细胞系的构建及对狂犬病病毒增殖效率的影响

黄伟涛, 李家琪, 彭瑶, 殷相平, 郭霄峰, 罗均

黄伟涛, 李家琪, 彭瑶, 等. TRIF敲除NA与BHK-21细胞系的构建及对狂犬病病毒增殖效率的影响[J]. 华南农业大学学报, 2025, 46(5): 627-636. DOI: 10.7671/j.issn.1001-411X.202502016
引用本文: 黄伟涛, 李家琪, 彭瑶, 等. TRIF敲除NA与BHK-21细胞系的构建及对狂犬病病毒增殖效率的影响[J]. 华南农业大学学报, 2025, 46(5): 627-636. DOI: 10.7671/j.issn.1001-411X.202502016
HUANG Weitao, LI Jiaqi, PENG Yao, et al. Construction of TRIF-knockout NA and BHK-21 cell lines and effect on rabies virus proliferation efficiency[J]. Journal of South China Agricultural University, 2025, 46(5): 627-636. DOI: 10.7671/j.issn.1001-411X.202502016
Citation: HUANG Weitao, LI Jiaqi, PENG Yao, et al. Construction of TRIF-knockout NA and BHK-21 cell lines and effect on rabies virus proliferation efficiency[J]. Journal of South China Agricultural University, 2025, 46(5): 627-636. DOI: 10.7671/j.issn.1001-411X.202502016

TRIF敲除NA与BHK-21细胞系的构建及对狂犬病病毒增殖效率的影响

基金项目:

国家重点研发计划(2022YFD1800104);甘肃省联合基金项目(23JRRA1481)

详细信息
    作者简介:

    黄伟涛,E-mail: 505903687@qq.com

    通讯作者:

    殷相平,主要从事动物疫苗与分子免疫学研究,E-mail: yinxiangping@caas.cn

    郭霄峰,主要从事狂犬病病毒研究,E-mail: xfguo@scau.edu.cn

    罗 均,主要从事狂犬病病毒研究,E-mail: junluo@scau.edu.cn

  • 中图分类号: Q789;S855.3

Construction of TRIF-knockout NA and BHK-21 cell lines and effect on rabies virus proliferation efficiency

  • 摘要:
    目的

    通过CRISPR/Cas9技术构建β干扰素TIR结构域衔接蛋白(TIR-domain-containing adaptor-inducing interferon β,TRIF)基因敲除小鼠NA细胞系与仓鼠BHK-21细胞系,评估狂犬病病毒(Rabies virus,RABV)在敲除细胞系中的增殖能力,探究TRIF在RABV感染过程中的功能。

    方法

    首先,设计单向导RNA(Single guide RNA,sgRNA),构建用于TRIF基因敲除的重组质粒pSpCas9-NA-TRIF-KO和pSpCas9-BHK-21-TRIF-KO,将重组质粒转染野生型NA与BHK-21细胞,通过嘌呤霉素初步筛选阳性细胞,并使用有限稀释法获得单细胞亚克隆。随后,对筛选的细胞扩大培养,并通过PCR扩增、测序以及Western blot鉴定,最终筛选TRIF敲除NA与BHK-21细胞系。最后,将RABV标准攻击毒株CVS-11与疫苗毒株BNSP-SAD分别接种TRIF敲除细胞系与野生型细胞系,通过Western blot检测病毒N蛋白的表达水平,并利用TCID50检测病毒滴度,以评估RABV在不同细胞系中的增殖能力。

    结果

    成功构建了用于TRIF基因敲除的重组质粒pSpCas9-NA-TRIF-KO与pSpCas9-BHK-21-TRIF-KO,并筛选鉴定出TRIF基因敲除NA细胞系与BHK-21细胞系。与野生型细胞系相比,2种TRIF敲除细胞系接种RABV CVS-11与BNSP-SAD后,N蛋白的表达量均在感染24 h后明显升高,病毒滴度同样均在感染24 h后显著上升。

    结论

    相较于野生型细胞系,RABV在TRIF基因敲除细胞系中的增殖能力更优,TRIF可能具有抑制病毒复制的能力。研究结果为深入研究TRIF功能提供了有力支持,也为RABV的培养与研究提供了新的细胞模型。

    Abstract:
    Objective

    To construct TIR-domain-containing adaptor-inducing interferon β (TRIF) gene knockout mouse NA cell line and hamster BHK-21 cell line using CRISPR/Cas9 technology, evaluate the proliferative capacity of rabies virus (RABV) in these knockout cell lines, and investigate TRIF function during RABV infection.

    Method

    First, single guide RNA (sgRNA) was designed, and recombinant plasmids pSpCas9-NA-TRIF-KO and pSpCas9-BHK-21-TRIF-KO were constructed for TRIF gene knockout. After plasmid transfection, positive cells were preliminarily screened using puromycin followed by single-cell subclone isolation through limited dilution. The expanded cell populations were subsequently validated by PCR amplification, sequencing, and Western blot identification, TRIF-knockout NA and BHK-21 cell lines were established. Standard challenge strain CVS-11 and vaccine strain BNSP-SAD of RABV were then inoculated into both knockout and wild-type cells. Viral N protein expression levels were detected by Western blot, and viral titers were determined through TCID50 assay to evaluate rabies virus proliferation efficiency in different cell lines.

    Result

    The recombinant plasmids pSpCas9-NA-TRIF-KO and pSpCas9-BHK-21-TRIF-KO for TRIF-knockout were successfully constructed, the TRIF-knockout NA and BHK-21 cell lines were screened and identified. Compared with the wild-type cell line, the expressions of N proteins in two TRIF-knockout cell lines inoculated with RABV CVS-11 and BNSP-SAD were obviously elevated after 24 h infection, and the virus titer significantly increased after 24 h infection.

    Conclusion

    RABV has superior proliferation capacity in TRIF-knockout cell lines compared to wild-type counterparts, and TRIF may have the ability to inhibit viral replication. The findings not only provide substantial support for further investigation of TRIF function, but also establish novel cellular models for RABV cultivation and research.

  • 图  1   质粒图谱

    Figure  1.   Plasmid profile

    图  2   TRIF基因敲除质粒测序图

    Figure  2.   Sequencing chromatogram of TRIF-knockout plasmid

    图  3   最低嘌呤霉素质量浓度的筛选(标尺:400 μm)

    Figure  3.   Screening of the lowest puromycin mass concentration (Scale: 400 μm)

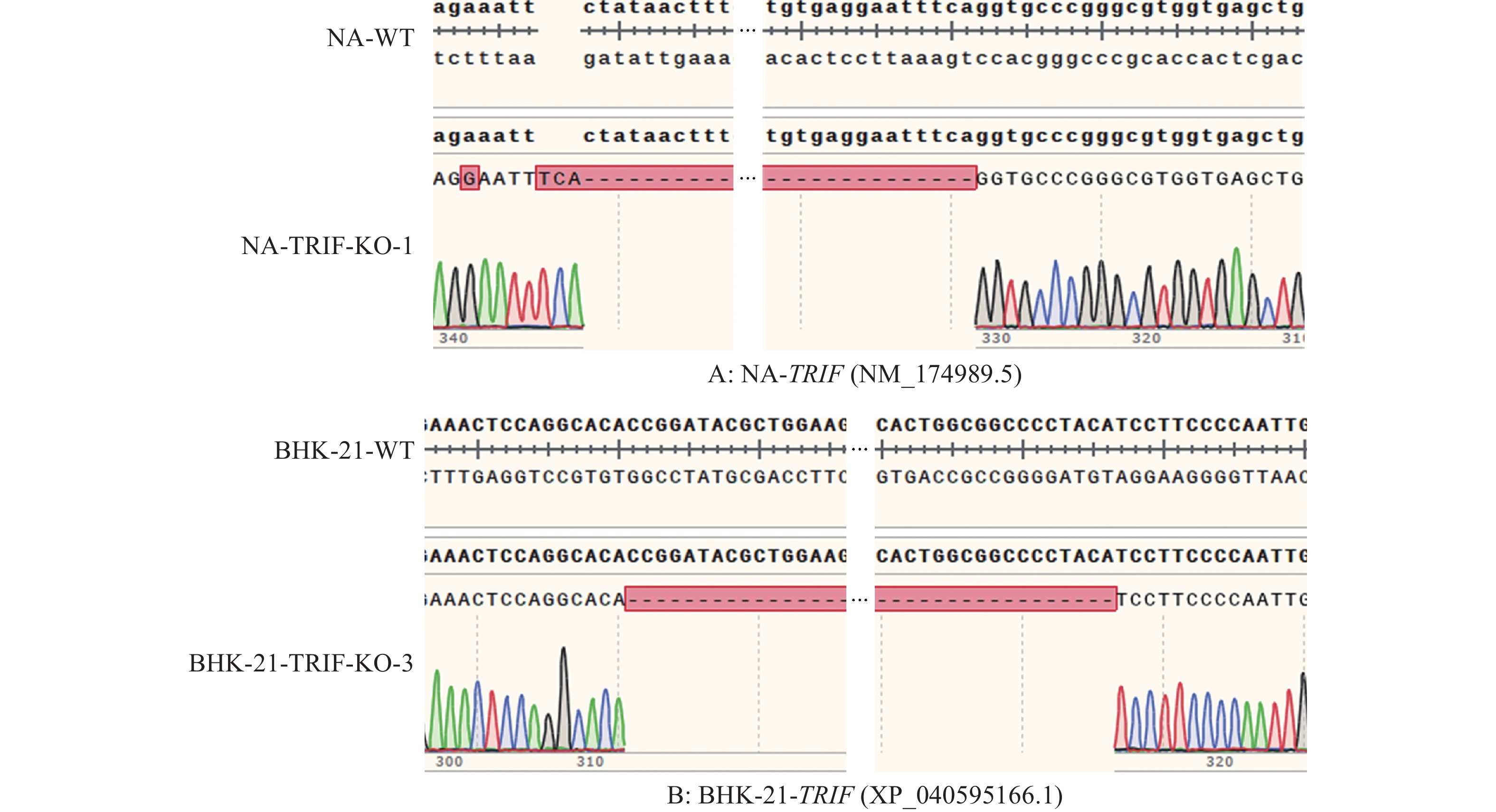

    图  4   TRIF敲除细胞系基因型验证测序图

    Figure  4.   Genotype validation sequencing chromatogram of TRIF-knockout cell lines

    图  5   利用Western blot检测TRIF敲除NA(A)和BHK-21(B)细胞系的蛋白表达水平

    Figure  5.   Protein expression level in TRIF-knockout NA (A) and BHK-21 (B) cell lines detected by Western blot

    图  6   野生型细胞系与敲除细胞系的细胞活力对比

    Figure  6.   Comparison of cell viability between wild-type and knockout cell lines

    图  7   BNSP-SAD在TRIF基因敲除NA(A)与BHK-21(B)细胞系中的荧光图(标尺:400 μm)

    Figure  7.   Fluorescence plots of BNSP-SAD in TRIF-knockout NA (A) and BHK-21 (B) cell lines (Scale: 400 μm)

    图  8   利用Western blot检测RABV-N蛋白在TRIF敲除NA(A、B)与BHK-21(C、D)细胞系中的表达水平

    Figure  8.   RABV-N protein expression levels in TRIF-knockout NA (A, B) and BHK-21 (C, D) cell lines detected by Western blot

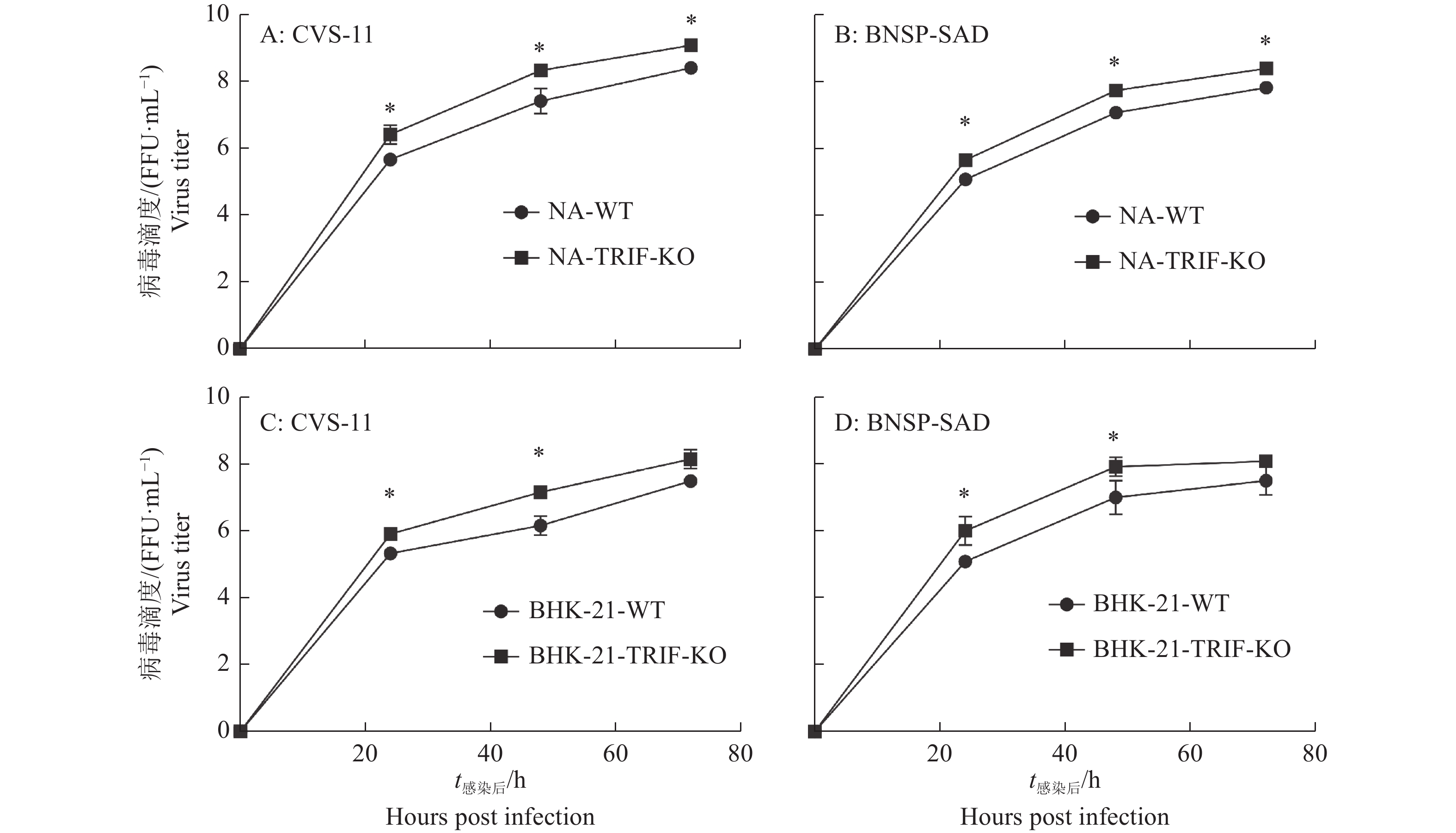

    图  9   RABV在TRIF基因敲除NA(A、B)和BHK-21(C、D)细胞系中的病毒滴度

    各小图中,*表示TRIF敲除细胞系与野生型细胞系差异显著(P<0.05,t检验)。

    Figure  9.   Virus titer of RABV in TRIF-knockout NA (A, B) and BHK-21 (C, D) cell lines

    In each figure, * indicates significant difference between TRIF-knockout and wild-type cell lines (P<0.05, t test).

    表  1   单向导RNA序列

    Table  1   Sequence of single guide RNA

    单向导RNA
    Single guide RNA
    上游引物序列(5′→3′)
    Sequence of forward primer
    下游引物序列(5′→3′)
    Sequence of reverse primer
    sgRNA-1(NA-TRIF-KO) CACCggccccgtcaggtaccccga AAACtcggggtacctgacggggcc
    sgRNA-2(NA-TRIF-KO) CACCGagcttctcccgaatacgta AAACtacgtattcgggagaagctC
    sgRNA-3(NA-TRIF-KO) CACCGacacgaaattagcgttccag AAACctggaacgctaatttcgtgtC
    sgRNA-1(BHK-21-TRIF-KO) CACCGtagcttctcccggatacgta AAACtacgtatccgggagaagctaC
    sgRNA-2(BHK-21-TRIF-KO) CACCgagcacgtggccctacgtatc AAACgatacgtagggccacgtgctc
    sgRNA-3(BHK-21-TRIF-KO) CACCgccaggcacaccggatacgc AAACgcgtatccggtgtgcctggc
    下载: 导出CSV

    表  2   鉴定测序引物

    Table  2   Primers used for identification and sequencing

    基因
    Gene
    上游引物序列(5′→3′)
    Sequence of forward primer
    下游引物序列(5′→3′)
    Sequence of reverse primer
    NA-TRIF(NM_174989.5) ATGTAACACACCGCTGGACA TCTGCTCCTTGAGGGTTCTG
    BHK-21-TRIF(XP_040595166.1) GGCCACCTTCTGTGAGGAAT GCTGAACCATCTGGGCATGA
    下载: 导出CSV
  • [1]

    AKIRA S, UEMATSU S, TAKEUCHI O. Pathogen recognition and innate immunity[J]. Cell, 2006, 12(4): 783-801.

    [2]

    AKIRA S. Toll-like receptor signaling[J]. Journal of Biological Chemistry, 2003, 278(40): 38105-38108. doi: 10.1074/jbc.R300028200

    [3]

    FANG F, OOKA K, SUN X Y, et al. A synthetic TLR3 ligand mitigates profibrotic fibroblast responses by inducing autocrine IFN signaling[J]. The Journal of Immunology, 2013, 191(6): 2956-2966. doi: 10.4049/jimmunol.1300376

    [4]

    CHEN C Y, SHIH Y C, HUNG Y F, et al. Beyond defense: Regulation of neuronal morphogenesis and brain functions via Toll-like receptors[J]. Journal of Biomedical Science, 2019, 26(1): 90. doi: 10.1186/s12929-019-0584-z.

    [5]

    BUGGE M, BERGSTROM B, EIDE O K, et al. Surface Toll-like receptor 3 expression in metastatic intestinal epithelial cells induces inflammatory cytokine production and promotes invasiveness[J]. Journal of Biological Chemistry, 2017, 292(37): 15408-15425. doi: 10.1074/jbc.M117.784090

    [6]

    OSHIUMI H, MATSUMOTO M, FUNAMI K, et al. TICAM-1, an adaptor molecule that participates in Toll-like receptor 3-mediated interferon-β induction[J]. Nature Immunology, 2003, 4(2): 161-167. doi: 10.1038/ni886

    [7]

    YAMAMOTO M, SATO S, MORI K, et al. Cutting edge: A novel Toll/IL-1 receptor domain-containing adapter that preferentially activates the IFN-β promoter in the Toll-like receptor signaling[J]. Journal of Immunology, 2002, 169(12): 6668-6672. doi: 10.4049/jimmunol.169.12.6668

    [8]

    MAHITA J, SOWDHAMINI R. Integrative modelling of TIR domain-containing adaptor molecule inducing interferon-β (TRIF) provides insights into its autoinhibited state[J]. Biology Direct, 2017, 12(1): 9. doi: 10.1186/s13062-017-0179-0.

    [9]

    JIANG Z F, MAK T W, SEN G, et al. Toll-like receptor 3-mediated activation of NF-κB and IRF3 diverges at Toll-IL-1 receptor domain-containing adapter inducing IFN-β[J]. Proceedings of the National Academy of Sciences of the United States of America, 2004, 101(10): 3533-3538.

    [10]

    NATH P, JENA K K, MEHTO S, et al. IRGM links autoimmunity to autophagy[J]. Autophagy, 2021, 17(2): 578-580. doi: 10.1080/15548627.2020.1810920

    [11]

    KAISER W J, OFFERMANN M K. Apoptosis induced by the toll-like receptor adaptor TRIF is dependent on its receptor interacting protein homotypic interaction motif[J]. Journal of Immunology, 2005, 174(8): 4942-4952. doi: 10.4049/jimmunol.174.8.4942

    [12]

    CHEN Y J, LIN J H, ZHAO Y, et al. Toll-like receptor 3 (TLR3) regulation mechanisms and roles in antiviral innate immune responses[J]. Journal of Zhejiang University: Science B, 2021, 22(8): 609-632. doi: 10.1631/jzus.B2000808

    [13]

    GHITA L, BREITKOPF V, MULENGE F, et al. Sequential MAVS and MyD88/TRIF signaling triggers anti-viral responses of tick-borne encephalitis virus-infected murine astrocytes[J]. Journal of Neuroscience Research, 2021, 99(10): 2478-2492.

    [14]

    ZENG Q, LIU J Q, LI Z Y, et al. Japanese encephalitis virus NS4B inhibits interferon beta production by targeting TLR3 and TRIF[J]. Veterinary Microbiology, 2023, 284: 109849. doi: 10.1016/j.vetmic.2023.109849.

    [15]

    SHINYA K, ITO M, MAKINO A, et al. The TLR4-TRIF pathway protects against H5N1 influenza virus infection[J]. Journal of Virology, 2012, 86(1): 19-24. doi: 10.1128/JVI.06168-11

    [16] 肖宇, 吴凡, 张宝石, 等. 狂犬病病毒强、弱毒株糖蛋白调节Ⅰ型干扰素作用的差异分析[J]. 华南农业大学学报, 2024, 45(2): 190-198. doi: 10.7671/j.issn.1001-411X.202211015
    [17]

    DU PONT V, PLEMPER R K, SCHNELL M J. Status of antiviral therapeutics against rabies virus and related emerging lyssaviruses[J]. Current Opinion in Virology, 2019, 35: 1-13. doi: 10.1016/j.coviro.2018.12.009

    [18]

    MA Y W, ZHANG L F, HUANG X X. Genome modification by CRISPR/Cas9[J]. The FEBS Journal, 2014, 281(23): 5186-5193. doi: 10.1111/febs.13110

    [19] 张雅玲, 王锌和, 李构思, 等. 新型DNA碱基编辑器的研究进展[J]. 华南农业大学学报, 2022, 43(6): 1-16. doi: 10.7671/j.issn.1001-411X.202208053
    [20]

    DOUDNA J A, CHARPENTIER E. The new frontier of genome engineering with CRISPR-Cas9[J]. Science, 2014, 346(6213): 1258096. doi: 10.1126/science.1258096.

    [21]

    MARCEAU C D, PUSCHNIK A S, MAJZOUB K, et al. Genetic dissection of Flaviviridae host factors through genome-scale CRISPR screens[J]. Nature, 2016, 535(7610): 159-163.

    [22]

    HAN J, PEREZ J T, CHEN C, et al. Genome-wide CRISPR/Cas9 screen identifies host factors essential for influenza virus replication[J]. Cell Reports, 2018, 23(2): 596-607. doi: 10.1016/j.celrep.2018.03.045

    [23] 郑艳虹, 吴梓琦, 刘谕儒, 等. 狂犬病病毒的起源、传播及遗传演化[J]. 畜牧兽医学报, 2025, 56(6): 2613-2625.
    [24]

    ULLAH M O, SWEET M J, MANSELL A, et al. TRIF-dependent TLR signaling, its functions in host defense and inflammation, and its potential as a therapeutic target[J]. Journal of Leukocyte Biology, 2016, 100(1): 27-45. doi: 10.1189/jlb.2RI1115-531R

    [25]

    ULLAH M O, VE T, MANGAN M, et al. The TLR signalling adaptor TRIF/TICAM-1 has an N-terminal helical domain with structural similarity to IFIT proteins[J]. Acta Crystallographica Section D, 2013, 69(12): 2420-2430. doi: 10.1107/S0907444913022385

    [26]

    SATO S, SUGIYAMA M, YAMAMOTO M, et al. Toll/IL-1 receptor domain-containing adaptor inducing IFN-β (TRIF) associates with TNF receptor-associated factor 6 and TANK-binding kinase 1, and activates two distinct transcription factors, NF-κB and IFN-regulatory factor-3, in the Toll-like receptor signaling[J]. Journal of Immunology, 2003, 171(8): 4304-4310. doi: 10.4049/jimmunol.171.8.4304

    [27]

    BAKER M O D G, SHANMUGAM N, PHAM C L L, et al. The RHIM of the immune adaptor protein TRIF forms hybrid amyloids with other necroptosis-associated proteins[J]. Molecules, 2022, 27(11): 3382. doi: 10.3390/molecules27113382.
