Effect of nematode on the evaluation of water and soil environment quality in coal mining area
-
摘要:目的
评价淮北采煤矿区生态环境质量，为矿区生态环境变化监测提供理论依据。
方法采用秀丽隐杆线虫Caenorhabditis elegans在矿区水质中的生长发育状况及矿区土壤线虫群落结构的变化进行淮北采煤矿区生态环境质量的评价研究。
结果采煤矿区水环境使秀丽隐杆线虫寿命和成活率降低、体长变短、产卵数减少，同时诱导线虫生殖细胞凋亡，且煤矿开采时间越长，采样点距离矿井愈近，对线虫发育指标的抑制作用越显著。采煤矿区土壤环境使土壤线虫属的数目减少，植物寄生线虫的相对丰度增高，同时线虫香农多样性指数、瓦斯乐斯卡指数和自由生活线虫成熟度指数显著降低，植物寄生线虫成熟度指数显著提高，表明采煤矿区环境降低了土壤质量。煤矿开采时间越长、采样点距离矿井愈近，对土壤线虫群落结构的影响越大。
结论秀丽隐杆线虫生长发育指标对水环境的响应，以及土壤线虫群落结构对土壤环境的响应，很好地指示了淮北采煤矿区的水环境质量和土壤环境质量；因此，可以利用线虫对采煤矿区水环境和土壤环境质量进行评价。
Abstract:ObjectiveTo evaluate the ecological environment quality of coal mining area in Huaibei, and provide a scientific and theoretical basis for monitoring the ecological environment change in the mining area.
MethodThe growth and development condition of Caenorhabditis elegans in the water environment of the mining area and the change of soil nematode community structure were studied to evaluate the ecological environment quality.
ResultThe water environment in the coal mining area reduced the life span, the survival rate, the body length and the number of eggs laid by C. elegans, meanwhile induced the apoptosis of C. elegans germ cells. The longer the coal mining time was and the closer the sampling site was to the mine, the more significant the inhibitory effect on the nematode development indicators was. Soil environment in coal mining area decreased the number of nematode genera, increased the relative abundance of phytophagous. At the same time, the Shannon diversity index, Wasilewska index and free-living nematode maturity index significantly decreased, and the phytophagous maturation index significantly increased, indicating that the mining environment reduced the soil health status. The longer the coal mining time was and the closer the sampling site was to the mine, the greater the influence on the soil nematode community structure was.
ConclusionThe responses of C. elegans growth and development index to water environment and soil nematode community structure to soil environment have well indicated the quality of water environment and soil environment in Huaibei coal mining area, therefore nematode can be used to evaluate the quality of water environment and soil environment of coal mining area.
-
-
![]()

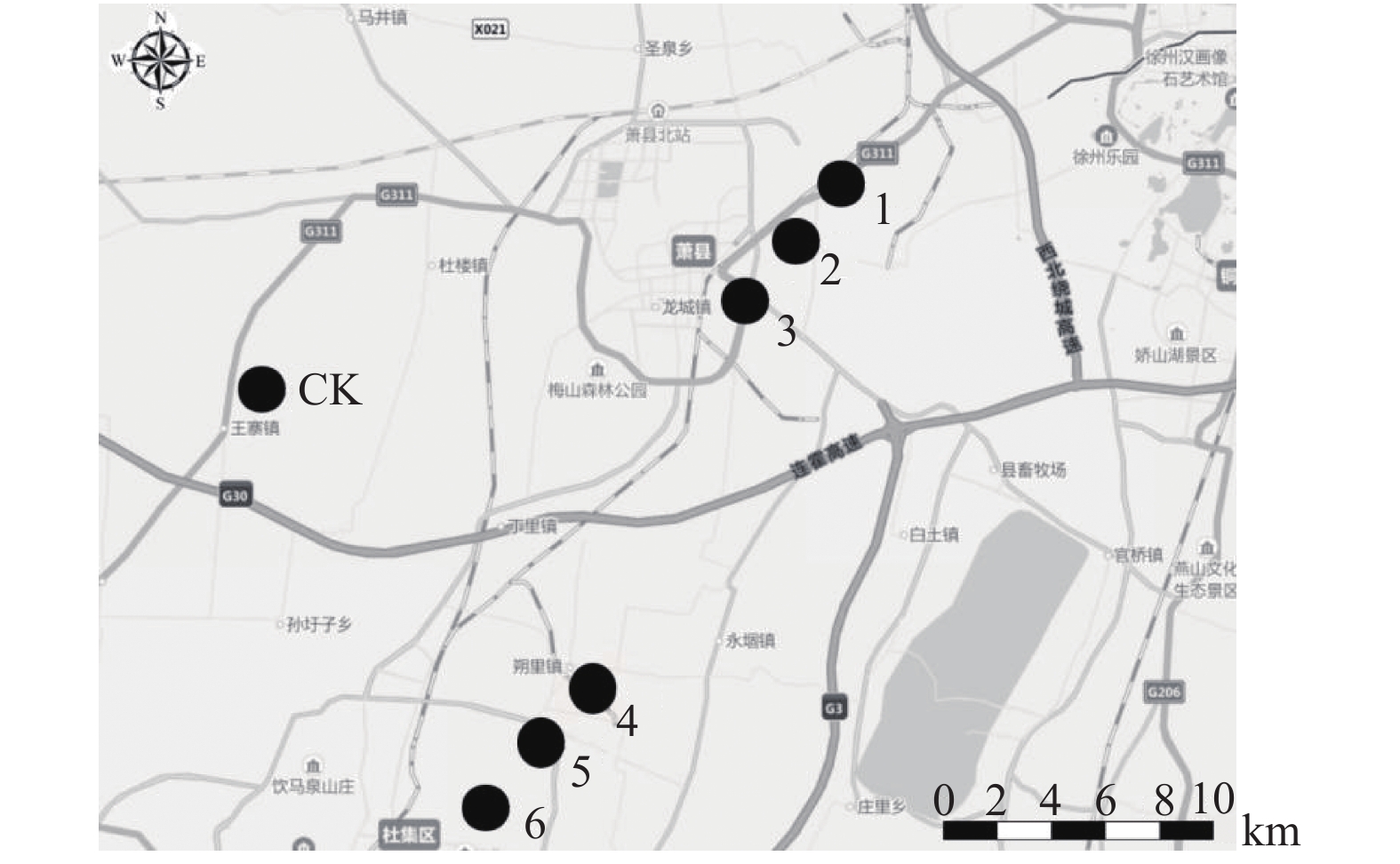

图 1 采样点分布示意图
CK：对照区，1：距离沈庄矿井100 m的矿区，2：距离沈庄矿井1 500 m的矿区，3：距离沈庄矿井3 000 m的矿区，4：距离石台矿井100 m的矿区，5：距离石台矿井1 500 m的矿区，6：距离石台矿井3 000 m的矿区
Figure 1. Distribution of sampling site
CK: Control area, 1: Mining area of 100 m away from Shenzhuang Mine, 2: Mining area of 1 500 m away from Shenzhuang Mine, 3: Mining area of 3 000 m away from Shenzhuang Mine, 4: Mining area of 100 m away from Shitai Mine, 5: Mining area of 1 500 m away from Shitai Mine, 6: Mining area of 3 000 m away from Shitai Mine
![]()
图 2 矿区水环境对秀丽隐杆线虫半数致死时间和存活率的影响
图A柱子上的不同小写字母表示样品间差异显著(P<0.05，LSD法)
Figure 2. Influence of mining area water environment on lethal time of 50% and survival rate of Caenorhabditis elegans
Different lowercase letters on the columns in Fig. A indicate significant differences among different samples (P<0.05, LSD method)
![]()

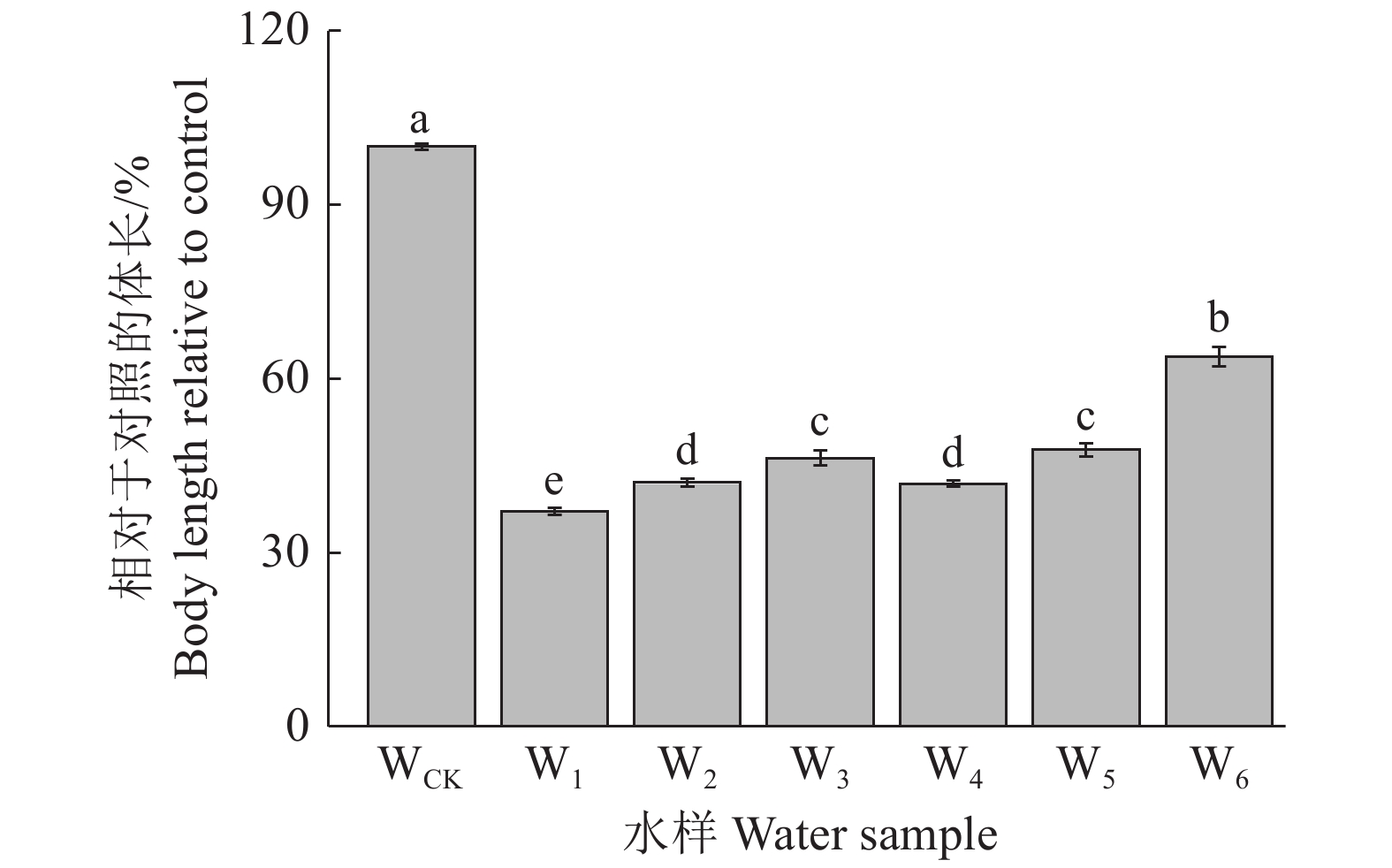

图 3 矿区水环境对秀丽隐杆线虫体长的影响
柱子上的不同小写字母表示样品间差异显著(P<0.05，LSD法)
Figure 3. Effects of mining area water environment on body length of Caenorhabditis elegans
Different lowercase letters on the columns indicate significant differences among different samples (P<0.05, LSD method)
![]()

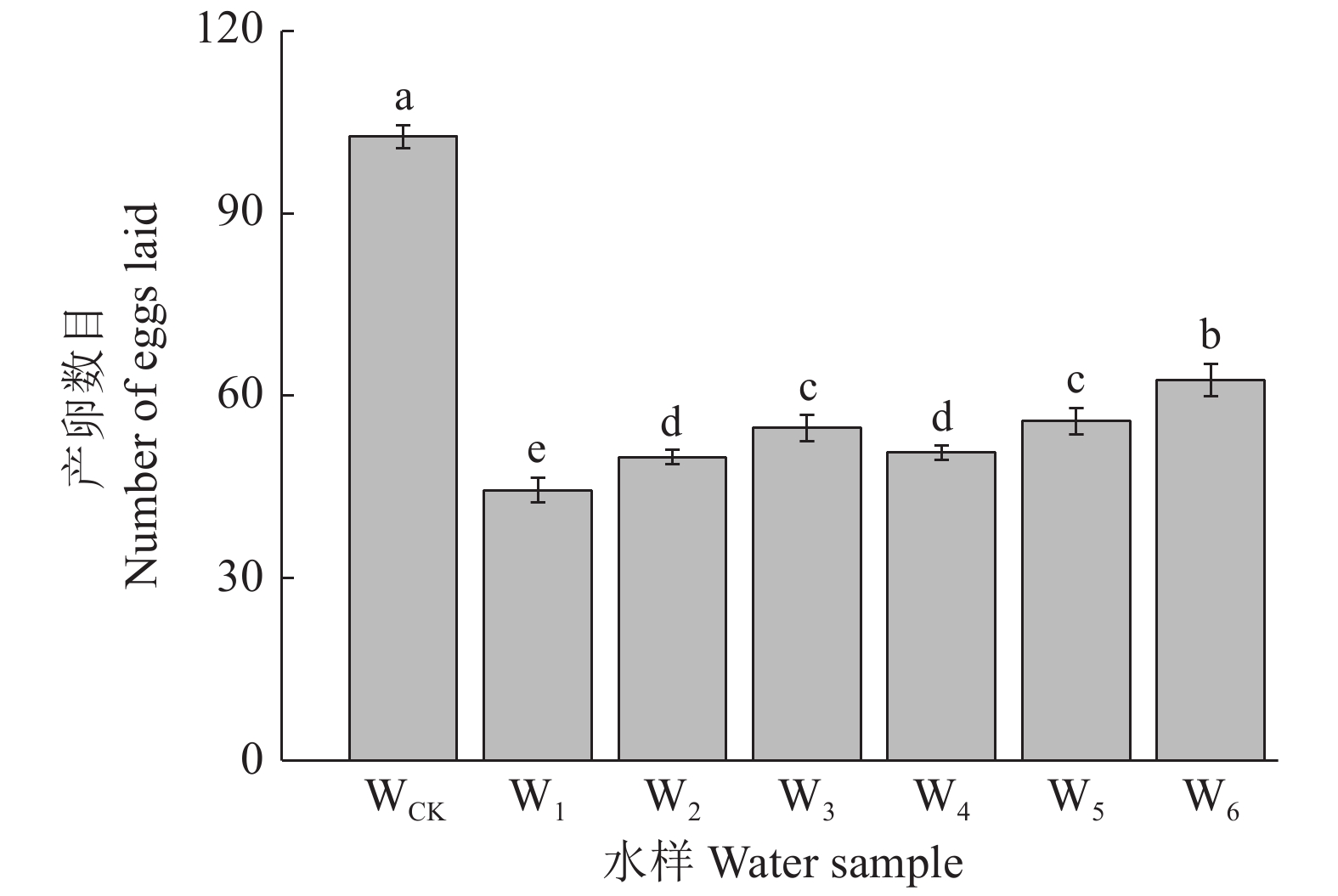

图 4 矿区水环境对秀丽隐杆线虫产卵数的影响
柱子上的不同小写字母表示样品间差异显著(P<0.05，LSD法)
Figure 4. Effects of mining area water environment on the number of eggs laid by Caenorhabditis elegans
Different lowercase letters on the columns indicate significant differences amnong different samples (P<0.05, LSD method)
![]()

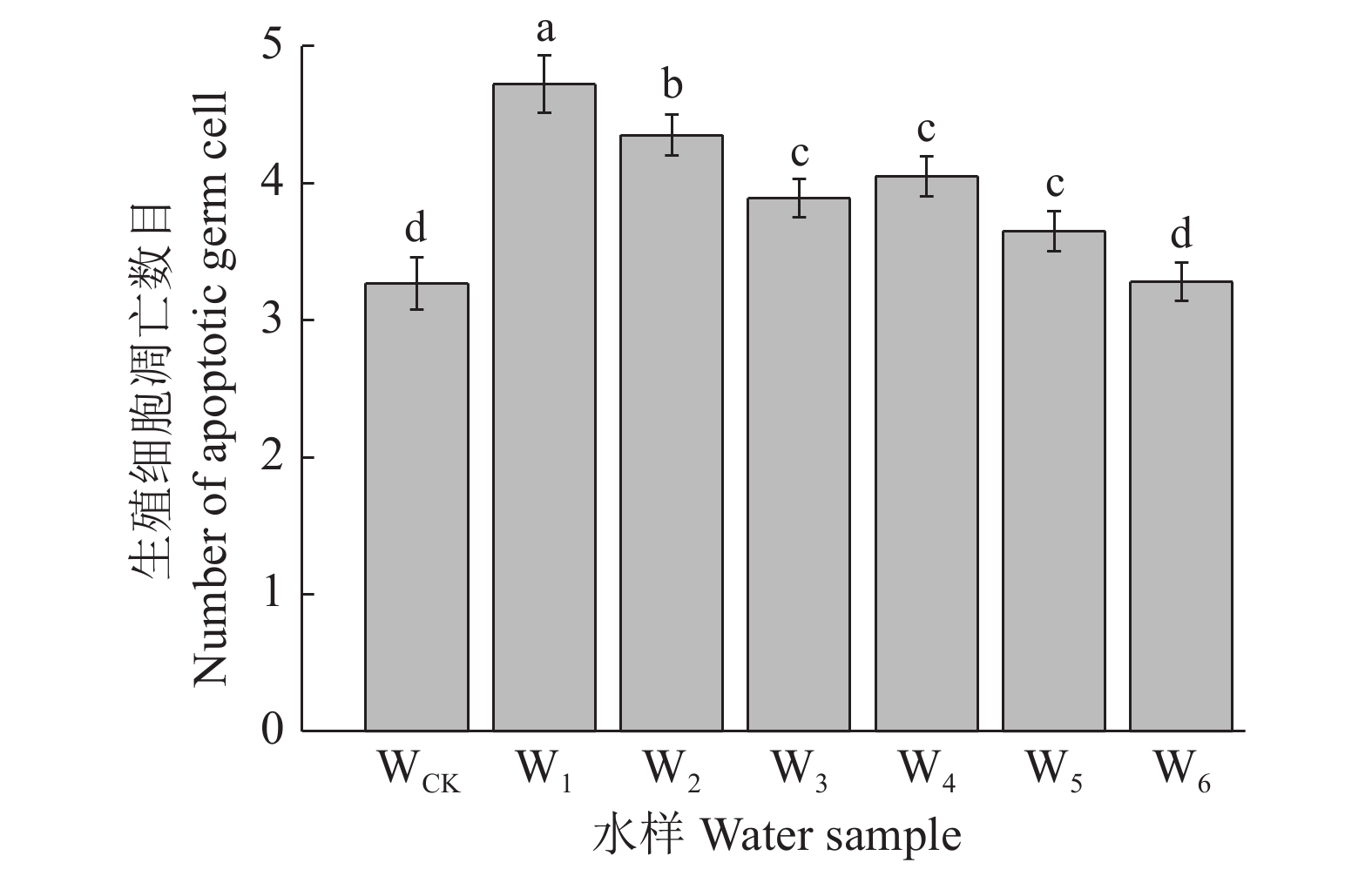

图 5 矿区水环境诱导的秀丽隐杆线虫生殖细胞凋亡
不同样品柱子上的不同小写字母表示样品间差异显著(P<0.05，LSD法)
Figure 5. The apoptosis of Caenorhabditis elegans germ cells induced by mining area water environment
Different lowercase letters on the columns indicate significant differences among different samples (P<0.05, LSD method)
表 1 矿区水样主要污染元素的含量1)
Table 1 Contents of the major pollutant elements in water samples of mining area
ρ/(μg·L−1) 水样
Water sample铜
Copper锌
Zinc铬
Chrome砷
Arsenic氟
FluorineWCK 0.04±0.001g 0.29±0.002f 7.05±0.001g 1.77±0.004g 0.38±0.001g W1 1.45±0.003a 5.01±0.001a 22.77±0.003a 15.85±0.004a 2.20±0.006a W2 1.06±0.004c 3.24±0.003b 16.86±0.001b 9.54±0.003c 1.57±0.005b W3 0.78±0.002d 1.08±0.002d 12.54±0.003d 7.25±0.002d 1.26±0.004d W4 1.19±0.002b 1.53±0.001c 16.56±0.002c 11.57±0.004b 1.33±0.003c W5 0.71±0.002e 0.78±0.002e 11.67±0.002e 5.36±0.004f 1.07±0.003e W6 0.43±0.004f 0.23±0.002g 11.12±0.006f 6.18±0.003e 0.73±0.002f 1)同列数据后不同小写字母表示样品间差异显著(P<0.05，LSD法 )
1) Different lowercase letters in the same column represent significant differences among different water samples of mining area (P<0.05, LSD method)
下载: 导出CSV
表 2 秀丽隐杆线虫发育指标与水环境中污染元素含量的相关性分析1)
Table 2 Correlation analyses of Caenorhabditis elegansgrowth and development indexes and pollution element contents in water environment
生长发育指标
Growth and development index铜
Copper锌
Zinc铬
Chrome砷
Arsenic氟
Fluorine半数致死时间 50% lethal time −0.958** −0.790* −0.916** −0.890** −0.942** 体长 Body length −0.903** −0.606 −0.798* −0.790* −0.840* 产卵数目 Number of eggs laid −0.879** −0.589 −0.794* −0.792* −0.819* 生殖细胞凋亡数目 Number of apoptotic germ cell 0.935** 0.950** 0.949** 0.905** 0.975** 1) “*”和“**”分别表示在0.05和0.01水平显著相关(Pearson法)
1) “*” and “**” indicate significant correlations at 0.01 and 0.05 levels respectively (Pearson method)
下载: 导出CSV

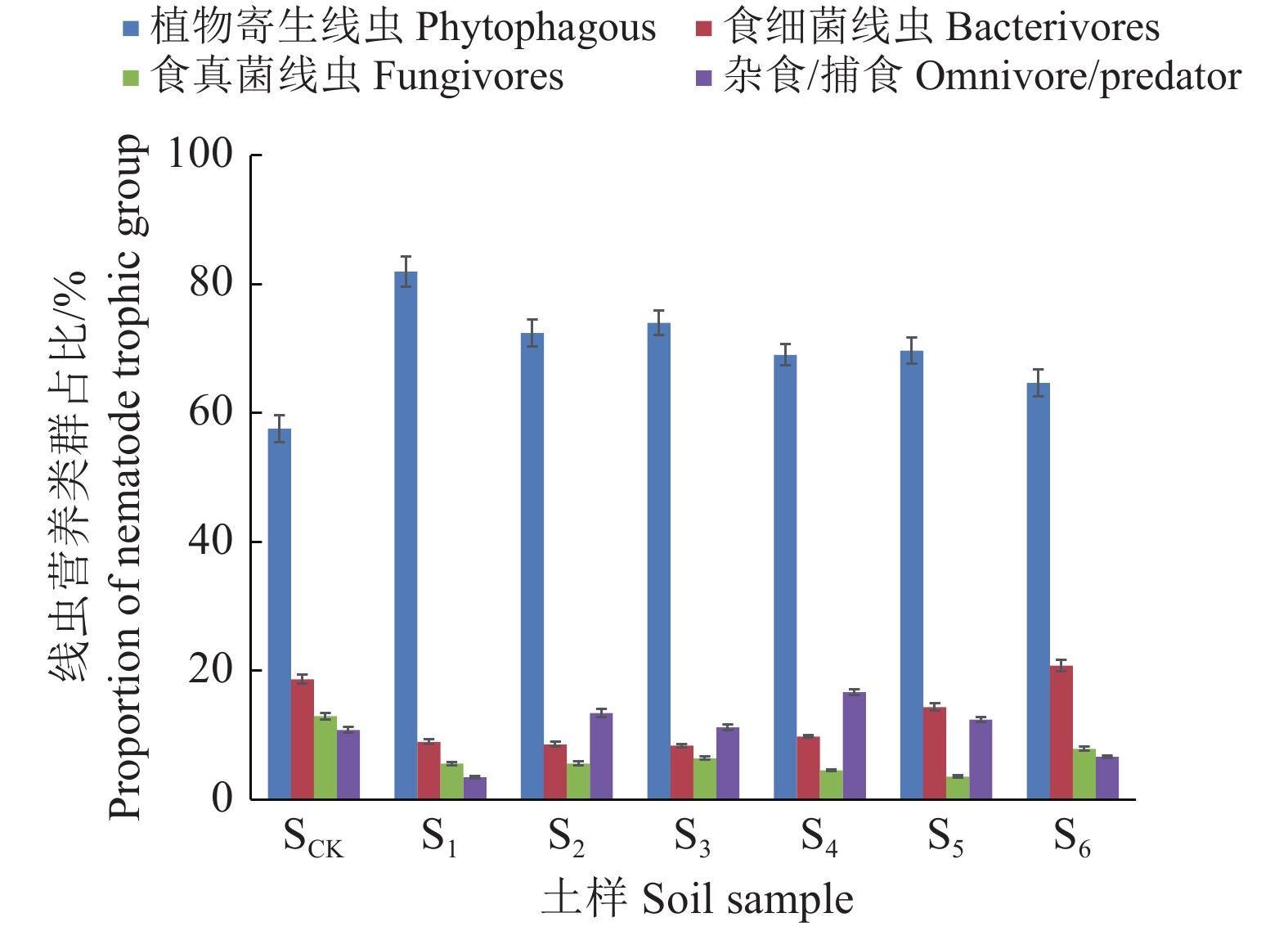

表 3 不同类群的土壤线虫占比
Table 3 The proportions of different soil nematode genera
% 属 Genus 相对丰度1) Relative abundance SCK S1 S2 S3 S4 S5 S6 螺旋属 Helicotylenchus 8.20 63.36# 13.08# 16.93# 21.58# 11.45# 28.16# 盘旋属 Rotylenchus 2.56 5.27 — 3.88 5.16 1.45 2.55 矮化属 Tylenchorhynchus 7.38 6.80 22.61# 17.60# 18.70# 23.93# 19.60# 短体属 Pratylenchus 28.62# 1.87 18.72# 8.00 17.89# 19.05# 6.94 丝尾垫刃属 Filenchus 3.45 2.80 15.70 6.40 2.44 4.29 5.79 垫刃属 Tylenchus 7.38 1.87 — 19.96# 3.25 2.86 1.65 潜根属 Hirschmanniella — — 2.30 1.25 — 6.67 — 板唇属 Chiloplacus 5.84 — 3.62 — 1.63 — — 盆咽属 Panagrolaimus 0.68 0.32 — 2.74 0.12 0.15 1.26 绕线属 Plectus 4.23 2.24 1.03 2.39 2.56 5.24 6.57 头叶属 Cephalobus 1.72 2.54 1.42 0.84 — 3.25 4.56 真头叶属 Eucephalobus 6.20 3.87 2.48 2.40 5.48 5.71 8.40 茎属 Ditylenchus 1.66 1.45 1.55 5.61 1.54 3.40 2.21 真滑刃属 Aphelenchus 8.20 2.33 3.01 0.80 3.00 0.15 3.44 滑刃属 Aphelenchoides 3.10 1.80 1.04 — — — 2.24 孔咽属 Aporcelaimus 2.46 — 3.31 4.80 6.20 8.30 1.10 单齿属 Mononchus 0.42 2.54 2.70 — 0.15 1.25 1.40 真矛线属 Eudorylaimus 6.56 0.93 6.47 6.40 7.06 2.86 4.13 中矛线属 Mesodorylaimus 1.36 — 0.96 — 3.25 — — 1) SCK、S1、S2、S3、S4、S5、S6为采样矿区土壤环境样品；“#”表示优势属；“—"表示未检测到
1) SCK, S1, S2, S3, S4, S5 and S6 are soil environment samples in the mining area; “#” indicates dominant genus;“—” indicates no genus detected
下载: 导出CSV
表 4 矿区土壤样品中线虫的生态指数1)
Table 4 The ecological indices of nematode in soil samples of mining area
土样
Soil
sample香农多样性
指数(H′)
Shannon
diversity index瓦斯乐斯卡
指数(WI)
Wasilewska
index优势度
指数(λ)
Dominance
index均匀度
指数(J′)
Evenness
index自由生活线虫
成熟度指数(MI)
Free-living nematode
maturity index植物寄生线虫
成熟度指数(PPI)
Phytophagous
maturity indexSCK 2.47±0.10a 0.55±0.02a 0.12±0.00b 0.85±0.04a 1.12±0.01a 1.62±0.05d S1 1.56±0.07c 0.18±0.00e 0.41±0.02a 0.57±0.02b 0.44±0.06d 2.41±0.11a S2 2.26±0.02b 0.20±0.01d 0.14±0.01b 0.82±0.01a 0.89±0.02c 2.02±0.03b S3 2.33±0.04b 0.20±0.02d 0.12±0.01b 0.86±0.04a 0.88±0.04c 1.96±0.02c S4 2.18±0.12b 0.21±0.02d 0.13±0.02b 0.81±0.03a 1.10±0.07a 2.01±0.07b S5 2.25±0.09b 0.26±0.01c 0.14±0.01b 0.83±0.02a 0.97±0.02b 2.02±0.04b S6 2.30±0.05b 0.44±0.02b 0.14±0.01b 0.83±0.03a 0.90±0.01c 1.87±0.04c 1) 同列数据后不同小写字母表示样品间差异显著(P<0.05，LSD法)
1) Different lowercase letters in the same column represent significant differences among different samples (P<0.05, LSD method)
下载: 导出CSV
表 5 土壤样品中主要污染元素含量1)
Table 5 Contents of major pollutant elements in soil samples
w/(mg·kg−1) 土样
Soil sample铬
Chrome铜
Copper锌
Zinc铅
Plumbum镉
Cadmium砷
Arsenic汞
MercurySCK 41.47±0.02g 14.82±0.03g 42.07±0.05g 18.21±0.02f 0.16±0.00c 8.55±0.02g 0.02±0.00g S1 54.24±0.02a 23.62±0.02a 60.58±0.08a 23.77±0.03a 0.19±0.00a 16.35±0.01a 0.11±0.00d S2 49.56±0.03c 20.48±0.02c 57.89±0.07b 20.54±0.01b 0.18±0.00b 13.58±0.01c 0.09±0.00e S3 45.89±0.01e 19.24±0.10d 52.64±0.05e 18.47±0.02e 0.16±0.00c 12.14±0.01e 0.08±0.00f S4 51.85±0.02b 18.98±0.03e 55.11±0.01c 20.17±0.02c 0.13±0.00d 13.01±0.02d 0.28±0.00a S5 45.84±0.02f 21.44±0.11b 53.31±0.06d 19.89±0.02d 0.12±0.00e 9.28±0.01f 0.15±0.00c S6 48.47±0.02d 17.91±0.01f 50.99±0.07f 15.78±0.01g 0.10±0.00f 14.51±0.03b 0.17±0.00b 1) 同列数据后不同小写字母表示样品间差异显著 (P<0.05，LSD法)
1) Different lowercase letters in the same column represent significant differences among different samples (P<0.05, LSD method)
下载: 导出CSV
表 6 土壤线虫生态指标与土壤环境中污染元素含量的相关性分析1)
Table 6 Correlation analysis of soil nematode ecological indexes and pollution element contents in soil environment
生态指数
Ecological index铬
Chrome
铜
Copper
锌
Zinc
铅
Plumbum
镉
Cadmium
砷
Arsenic
汞
Mercury
PP′ 0.750 0.920** 0.909** 0.749 0.506 0.677 0.122 BF′ −0.534 −0.627 −0.729 −0.714 −0.636 −0.362 −0.108 FF′ −0.632 −0.807* −0.819* −0.453 0.097 −0.361 −0.615 OP′ −0.225 −0.287 −0.137 −0.137 −0.195 −0.494 0.352 H′ −0.813* −0.802* −0.748 −0.811* −0.449 −0.712 −0.164 WI −0.681 −0.823* −0.890** −0.668 −0.364 −0.480 −0.346 λ 0.662 0.690 0.589 0.757* 0.524 0.638 −0.065 J′ −0.725 −0.695 −0.625 −0.790* −0.509 −0.662 −0.029 MI −0.638 −0.769* −0.687 −0.622 −0.512 −0.735 0.159 PPI 0.855* 0.953** 0.924** 0.808* 0.397 0.713 0.269 1) PP′：植物寄生线虫相对丰度，BF′：食细菌线虫相对丰度，FF′：食真菌线虫相对丰度，OP′：杂食/捕食线虫相对丰度，H′：香农多样性指数，WI：瓦斯乐斯卡指数，λ：优势度指数，J′：均匀度指数，MI：自由生活线虫成熟度指数，PPI：植物寄生线虫成熟度指数；“*”和“**”分别表示在0.05和0.01水平显著相关(Pearson法)
1) PP′：Relative abundance of phytophagous, BF′：Relative abundance of bacterivores, FF′：Relative abundance of fungivores, OP′：Relative abundance of omnivore/predator, H′：Shannon diversity index, WI：Wasilewska index, λ：Dominance index, J′：Evenness index, MI：Free-living nematode maturity index, PPI：Phytophagous maturity index; “*” and “**” indicate significant correlations at 0.01 and 0.05 levels respectively (Pearson method)
下载: 导出CSV
-
