基于循环残差注意力的群养生猪实例分割

刘坤; 杨怀卿; 杨华; 胡志伟; 孟珂

doi:10.7671/j.issn.1001-411X.202006013

基于循环残差注意力的群养生猪实例分割

刘坤^1,,
杨怀卿^1, ,,
杨华¹,
胡志伟¹,
孟珂²

1.
山西农业大学信息科学与工程学院，山西太谷 030801
2.
吕梁学院城乡规划系，山西吕梁 033001

基金项目: 国家自然科学基金 (31671571)；山西农业大学青年科技创新基金(2019027)；山西农业大学科技创新基金(2020BQ14)

详细信息

作者简介:
刘坤(1996—)，男，硕士研究生，E-mail: liukunabcd@126.com

通讯作者:
杨怀卿(1964—)，男，副教授，E-mail: yanghq@sxau.edu.cn

中图分类号: S828
计量
- 文章访问数: 01025
- HTML全文浏览量: 0
- PDF下载量: 01282
出版历程
- 收稿日期: 2020-06-04
- 网络出版日期: 2023-05-17
- 刊出日期: 2020-11-09

Instance segmentation of group-housed pigs based on recurrent residual attention

1.
College of Information Science and Engineering, Shanxi Agricultural University, Taigu 030801, China
2.
Urban and Rural Planning of Architecture Department, Lüliang University, Lüliang 033001, China

摘要

摘要:
目的
在群养环境下，实现生猪粘连、杂物遮挡等不同条件下生猪个体的高精度分割。

方法
对真实养殖场景下的8栏日龄20~105 d共45头群养生猪进行研究，以移动相机拍摄图像为数据源，并执行改变亮度、加入高斯噪声等数据增强操作获取标注图片3 834张。探究基于2个骨干网络ResNet50、ResNet101与2个任务网络Mask R-CNN、Cascade mask R-CNN交叉结合的多种模型，并将循环残差注意力(RRA)思想引入2个任务网络模型中，在不显著增加计算量的前提下提升模型特征提取能力、提高分割精度。

结果
选用Mask R-CNN-ResNet50比Cascade mask R-CNN-ResNet50在AP_0.5、AP_0.75、AP_0.5-0.95和AP_{0.5-0.95-large}指标上分别提升4.3%、3.5%、2.2%和2.2%；加入不同数量的RRA模块以探究其对各个任务模型预测性能影响，试验表明加入2个RRA模块后对各个任务模型的提升效果最为明显。

结论
加入2个RRA模块的Mask R-CNN-ResNet50模型可以更精确、有效地对不同场景群养生猪进行分割，为后续生猪身份识别与行为分析提供模型支撑。
- 循环残差注意力 /
- 实例分割 /
- 图像处理 /
- Mask R-CNN /
- Cascade mask R-CNN
Abstract:
Objective
To realize high-precision segmentation of individual pigs under different conditions such as pig adhesion and debris shielding in a group breeding environment.

Method
A total of 45 group-housed pigs of 20 to 105 days from eight sheds in real farming scenes were studied. Mobile camera images were used as data sources, and data enhancement operations such as changing brightness and adding Gaussian noise were performed to obtain 3 834 annotated pictures. We explored multiple models with the cross-combinations of two backbone networks ResNet50, ResNet101 and two mission networks Mask R-CNN, Cascade mask R-CNN. We also introduced the idea of recurrent residual attention (RRA) into the two major task network models to improve the feature extraction ability and segmentation accuracy of the model without significantly increasing the amount of calculation.

Result
Compared with Cascade mask R-CNN-ResNet50, Mask R-CNN-ResNet50 improved AP_0.5, AP_0.75, AP_0.5-0.95 and AP_{0.5-0.95-large} by 4.3%, 3.5%, 2.2% and 2.2% respectively. Different numbers of RRA modules were added to explore the impact on the prediction performance of each task model. The experiment showed that adding two RRA modules had the most obvious improvement effect on each task model.

Conclusion
The Mask R-CNN-ResNet50 model with two RRA modules can more accurately and effectively segment group-housed pigs under different scenes. The results can provide a model support for subsequent identification and behavior analysis of live pigs.
- recurrent residual attention /
- instance segmentation /
- image processing /
- Mask R-CNN /
- Cascade mask R-CNN

HTML全文

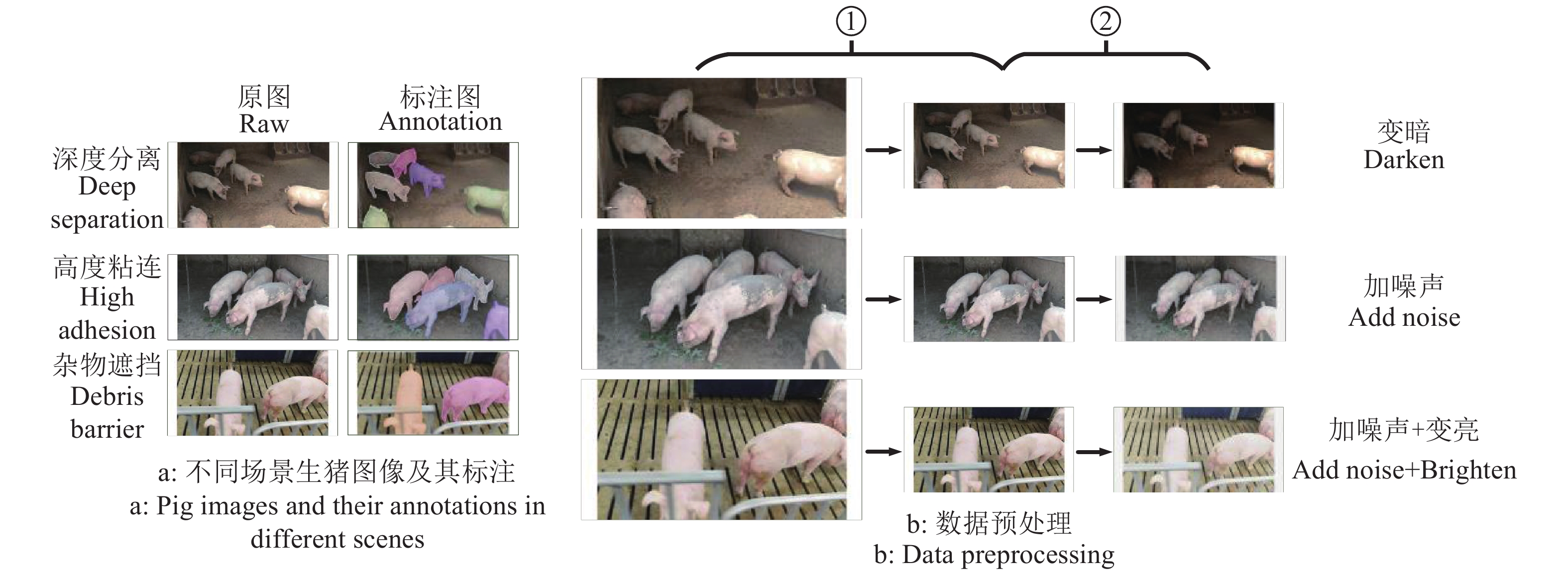

图 1 数据集展示及预处理

①表示对2 048×1 024图片与标注结果进行整体放缩操作，②表示对图片进行数据增强操作

Figure 1. Dataset display and preprocessing

① represents the overall zoom operation on the 2 048×1 024 picture and the annotation result，② represents the data enhancement operation on the picture

下载: 全尺寸图片幻灯片

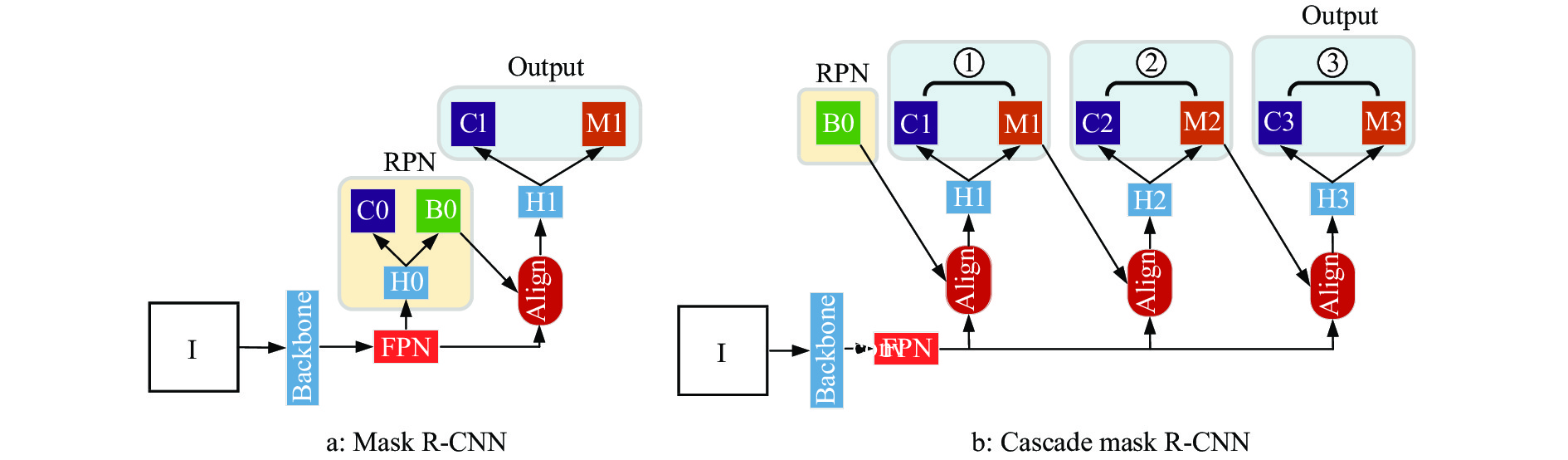

图 2 Mask R-CNN与Cascade mask R-CNN模型对比图

I表示输入图像，Backbone表示骨干网络，Align表示ROIAlign，H表示网络头部，C表示分类结果，M表示分割结果，①②③分别表示IOU阈值为0.5、0.6和0.7的头部网络

Figure 2. Mask R-CNN and Cascade mask R-CNN model comparison chart

I represents the input image, Backbone represents the backbone network, Align represents the ROIAlign, H represents the network header, C represents the classification result, M represents the segmentation result, ①②③ represent the head networks with IOU thresholds of 0.5, 0.6 and 0.7 respectively

下载: 全尺寸图片幻灯片

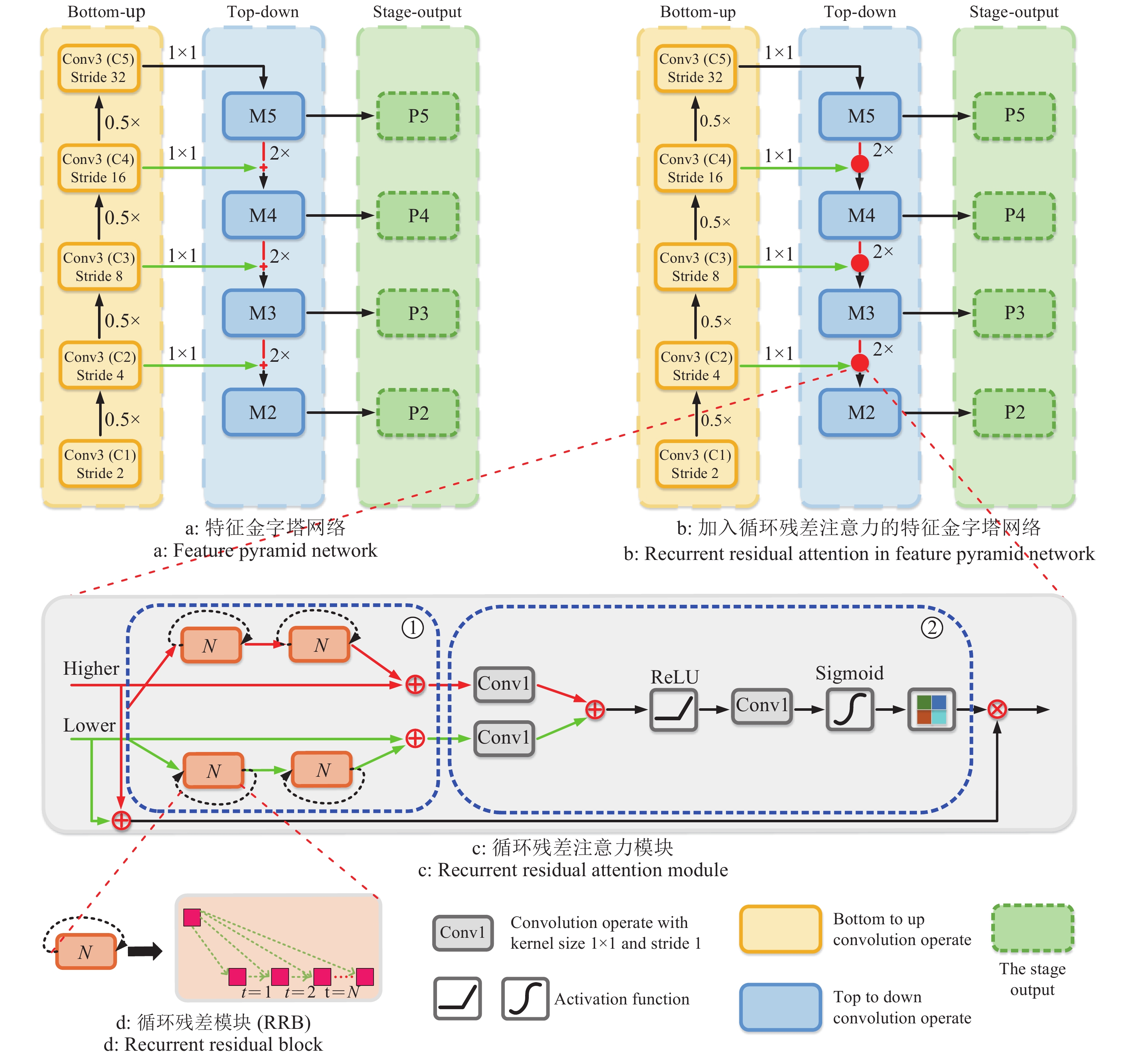

图 3 传统FPN与加入RRA模块的FPN对比结构图

M2~M5分别表示第2~5阶段自顶向下组件卷积操作后的输出，P2~P5分别表示第2~5阶段自底向上与自顶向下组件融合后的输出，N表示循环的次数，Higher与Lower表示高阶与低阶特征，ReLU与Sigmoid表示激活函数，①和②分别表示循环残差簇与注意力组件块

Figure 3. Comparative structure diagram of traditional FPN and FPN added with RRA module

M2−M5 respectively represent the output after the top-down component convolution operation in the second to fifth stages，P2−P5 respectively represent the output after the bottom-up and top-down component fusion of the second to fifth stages，N represents the number of cycles，Higher and Lower represent high-order and low-order features respectively，ReLU and Sigmoid respectively represent activation functions，① and ② represent recurrent residual cluster and attention component blocks, respectively

下载: 全尺寸图片幻灯片

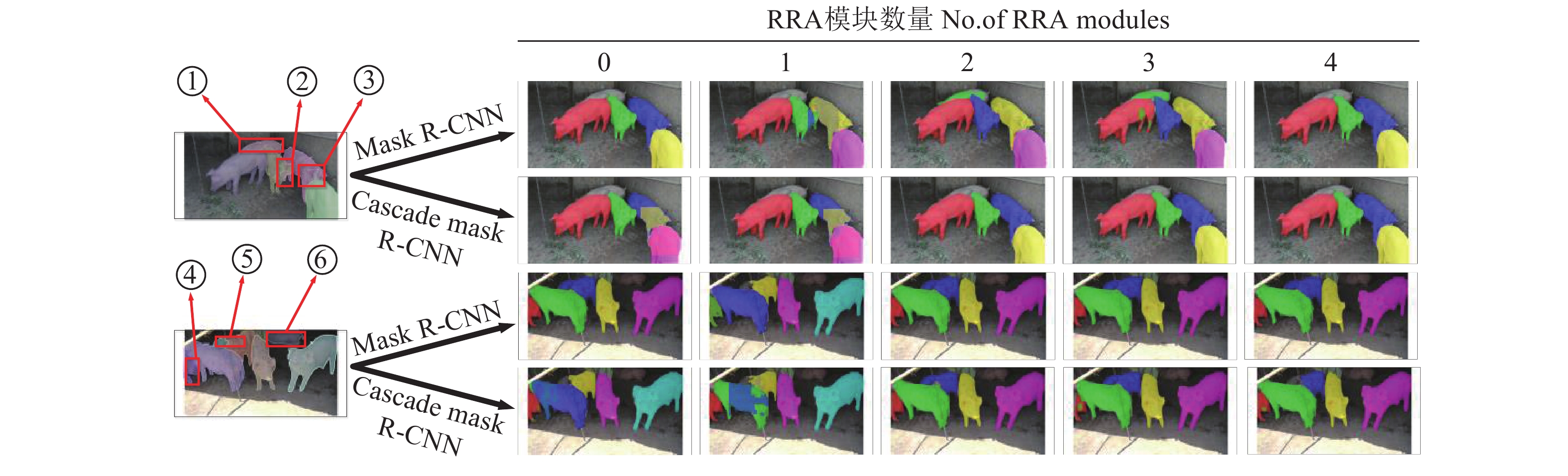

图 4 加入不同循环残差注意力(RRA)模块的Cascade mask R-CNN与Mask R-CNN模型测试集预测结果可视化展示

①~⑥表示各种模型预测结果差异较大的部位对应的生猪编号

Figure 4. Visual display of prediction results of Cascade mask R-CNN and Mask R-CNN model test sets with different recurrent residual attention(RRA) modules

①−⑥ indicate the serial numbers of pigs having the parts with large differences in the prediction results of various models

下载: 全尺寸图片幻灯片

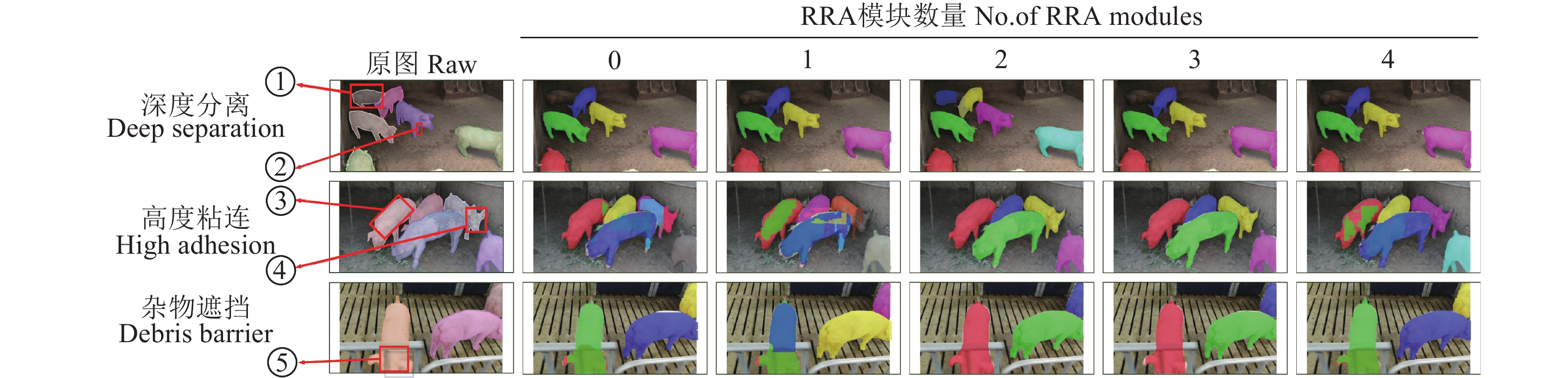

图 5 加入不同循环残差注意力(RRA)模块的Mask R-CNN-ResNet50模型对不同场景数据分割可视化展示

①~⑤表示各种模型预测结果差异较大的部位对应的生猪编号，GT表示通过LabelMe标注的真实结果

Figure 5. Visualization of the segmentation of different scene data using the Mask R-CNN-ResNet50 model added with different recurrent residual attention(RRA) modules

①−⑤ indicate the serial numbers of pigs having the parts with large differences in the prediction results of various models, GT represents the real results marked by LabelMe

下载: 全尺寸图片幻灯片

表 1 不同骨干网络下不同任务网络分割的平均精度(AP)¹⁾

Table 1 Average precision(AP) for different task networks under different backbone networks

模型 Model	骨干网络 Backbone network	AP_0.50	AP_0.75	AP_0.50-0.95	AP_{0.50-0.95-large}
Mask R-CNN	ResNet50	0.885	0.714	0.582	0.605
Mask R-CNN	ResNet101	0.660	0.348	0.368	0.384
Cascade mask R-CNN	ResNet50	0.842	0.679	0.560	0.583
Cascade mask R-CNN	ResNet101	0.834	0.642	0.541	0.564
1)AP_x表示以x作为IOU阈值所对应的AP指标值　1)AP_x represents the AP index value using x as the IOU threshold

下载: 导出CSV

表 2 引入不同循环残差注意力(RRA)模块任务网络分割的平均精度(AP)¹⁾

Table 2 Average precision (AP) of task network segmentation with different recurrent residual attention (RRA) modules

模型 Model	骨干网络 Backbone network	RRA模块数量 No. of RRA modules	AP_0.50	AP_0.75	AP_0.50-0.95	AP_{0.50-0.95-large}
Mask R-CNN	ResNet50	0	0.885	0.714	0.582	0.605
		1	0.860	0.706	0.585	0.611
		2	0.892	0.769	0.636	0.660
		3	0.890	0.764	0.628	0.651
		4	0.887	0.752	0.618	0.642
	ResNet101	0	0.660	0.348	0.368	0.384
		1	0.646	0.364	0.350	0.365
		2	0.686	0.474	0.400	0.416
		3	0.684	0.461	0.396	0.409
		4	0.684	0.469	0.396	0.410
Cascade mask R-CNN	ResNet50	0	0.842	0.679	0.560	0.583
		1	0.835	0.700	0.579	0.603
		2	0.874	0.767	0.631	0.654
		3	0.873	0.749	0.623	0.647
		4	0.864	0.745	0.614	0.639
	ResNet101	0	0.834	0.642	0.541	0.564
		1	0.836	0.687	0.568	0.591
		2	0.885	0.772	0.634	0.660
		3	0.883	0.770	0.630	0.654
		4	0.873	0.756	0.617	0.641
1) AP_x表示以x作为IOU阈值所对应的AP指标值　1) AP_x represents the AP index value using x as the IOU threshold

下载: 导出CSV
